HARRY GEISTEIK PZ 28-3TD Precision Hotplate with Titanium Surface, 600°C, 280 mm x 200 mm, 10 kg, 230 V, 50-60 Hz

CAD $ 7,519.05
In stock
Overview
SKU
PZ 28-3TD

HARRY GEISTEIK PZ 28-3TD Precision Hotplate with Titanium Surface, 600°C, 280 mm x 200 mm, 10 kg, 230 V, 50-60 Hz

Overview
HARRY GEISTEIK PZ 28-3TD Precision Hotplate with Titanium Surface, 600°C, 280 mm x 200 mm, 10 kg, 230 V, 50-60 Hz
Overview

High-performance hotplate for temperatures of up to 600°C, short heat-up time (600°C in 20 minutes). Due to the elaborate insulation, the unit can also be placed on heat-sensitive standing surfaces. The insulated hinged lid considerably reduces heat loss. When the lid is closed, a gap of 26 mm (higher lid of request) remains to the heating plate surface, which allows intensive heating of flat parts at exact temperatures.

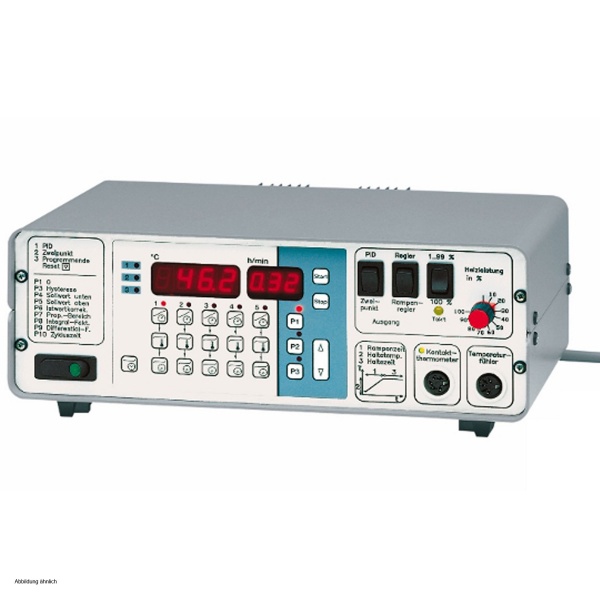

The temperature control is carried out either with a temperature or program controller. The plate is kept constant at a set temperature throughout the entire control range with the temperature controller.

With the program controller, so-called temperature profiles can be run, i.e., specific heating-up, cooling off and holding phases (max. 5 ramps) can be controlled, each phase lasting up to 9h 59min.

More Information
Product Type Hot Plate
Top Size 200 x 280
Top Surface Material Titanium
Power 2200 W
Operating Temperature Range 600°C
Temperature Spread +-2 K
Cord Length 1.5 m
Dimensions 350 x 300 x 145 mm
Weight 10 kg
Warranty 2 yr
Voltage Rating 230 V/50 to 60 Hz
